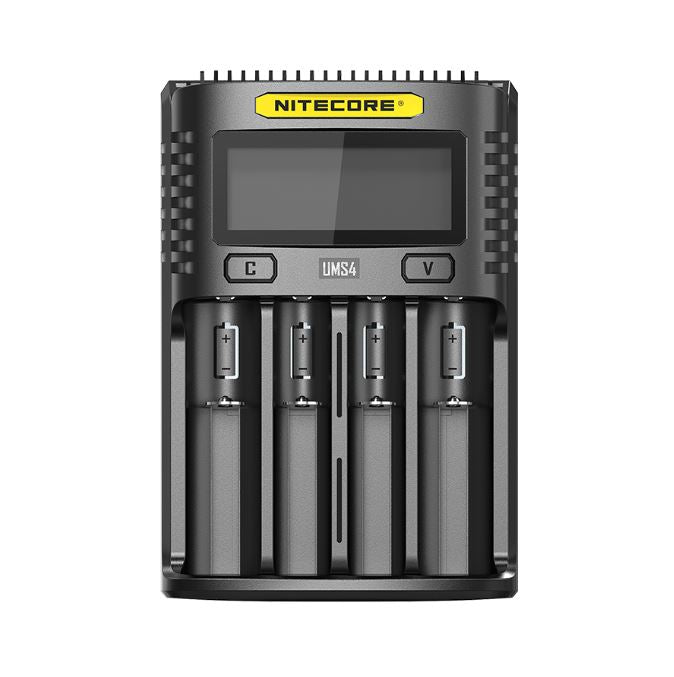

Nitecore UMS4 3A USB 4 Slot Quick Charger

Nitecore UMS4 3A USB 4 Slot Quick Charger

The UMS4 is a 3A, 4 slot USB quick charger capable of a maximum output of 4000mA.  Specifically optimized to charge IMR batteries in various sizes (yet perfectly compatible with Li-ion, LiFePO4, NI-MH & Ni-Cd in various sizes (see specs to ensure compatibility)), the programming of the unit effectively extends the lifespan of your cells by ensuring the charge process finishes with the cell voltage within safe limits.



The UMS4 features automatic detection of cell power levels which then automatically sets the appropriate voltage and charging mode (LiFePO4 and 3.8V Li-ion batteries excluded). The charge settings can also be manually adjusted to suit various charging needs.  The UMS4 is energy-efficient and boasts a large and detailed LCD that provides real-time charging information as well battery internal resistance and the health of the cell.



The UMS4 comes standard with piece of mind also: insured worldwide by Ping An Insurance (Group) Company of China, Ltd., made from durable and fire-retardant PC materials designed for optimal heat dissipation, and fitted with a plethora of safety features like reverse polarity protection, short circuit protection, over-discharged battery activation, and overtime charging protection.


RoHS, CE, FCC, and CEC certified.



$54.95
$54.95
Sale Sold out
Tax included.
View full details

Read the manual here



Features:

  • Intelligent USB Four-Slot Superb Charger
  • QC 2.0 input available
  • Capable of charging 4 batteries simultaneously while controlling each slot independently
  • Up to 3,000mA charging speed in a single slot
  • Compatible with Li-ion and Ni-MH/Ni-Cd batteries with automatic detection
  • Automatic detection of battery power level and automatic selection of the appropriate voltage and charging mode (LiFeP04 and 3.8V Li-ion batteries excluded)
  • Automatic selection between 3 charging modes (CC, CV and -dV/dt)
  • Energy-efficient LCD display for real-time charging information
  • Capable of manually selecting the charging cut-off voltage and the charging current
  • Automatic detection of large/small capacity batteries and automatic selection of appropriate charging current
  • Automatic termination upon charging completion
  • Reverse polarity protection and short circuit protection
  • Over-discharged battery activation
  • Li-ion battery restoration
  • Overtime charging protection
  • Automatic detection of battery internal resistance and display of battery health
  • Made from durable and fire-retardant PC materials
  • Optimal heat dissipation design
  • Certified by RoHS, CE, FCC and CEC
  • Insured worldwide by Ping An Insurance (Group) Company of China, Ltd.

Input:
DC 5V/2A 12V/1.5A
18W (MAX)

Output voltage:
4.35V±1% / 4.2V±1% / 3.7V±1% / 1.48V±1%

Output current:
QC Mode: 3,000mA*1 (MAX) 2,000mA*2 (MAX) 1,000mA*4 (MAX)
Standard Mode: 2,000mA*1 (MAX) 1,000mA*2 (MAX) 500mA*4 (MAX)

Compatible with:
IMR/Li-ion/LiFePO4: 10440, 14500, 14650, 16500, 16340(RCR123), 16650,
17350, 17500, 17650, 17670, 17700, 18350, 18490,
18500, 18650, 18700, 20700, 21700, 22500, 22650,
25500, 26500, 26650, 26700
Ni-MH/Ni-Cd: AA, AAA, AAAA, C, D
